1827654-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1827654-1
Datasheet:
Description:

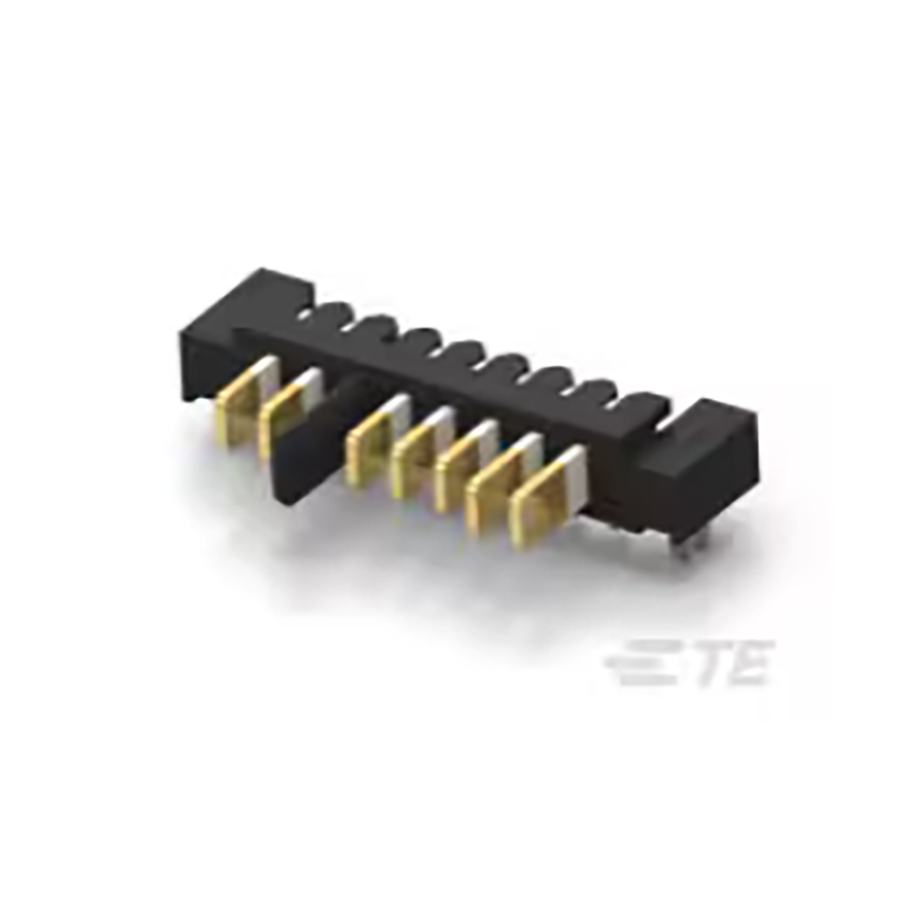

Power Connectors Through Hole Current Rating:7 A Voltage Rating:30 V Header, Male Blades
| Parameter | Value |
|---|---|
| Length | 22.6 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Bulk |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2 mm |
| Number of Terminals | 7 |
| Current Rating | 7 A |
| Max Current Rating | 6 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Number of Contacts | 7 |
| ELV | Compliant |
| Connector Type | Header, Male Blades |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Fastening Type | Pull, Push |
| Max Voltage Rating (AC) | 30 V |
| Housing Color | Black |
| PCB Mounting Orientation | Right Angle |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| PCB Mount Retention | With |
